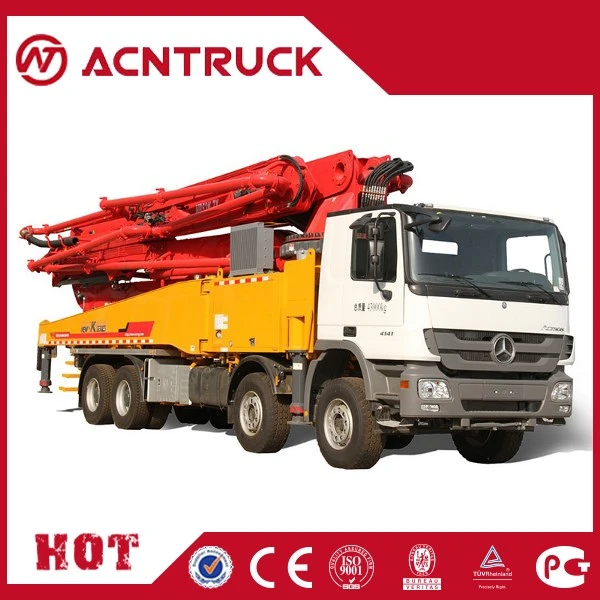

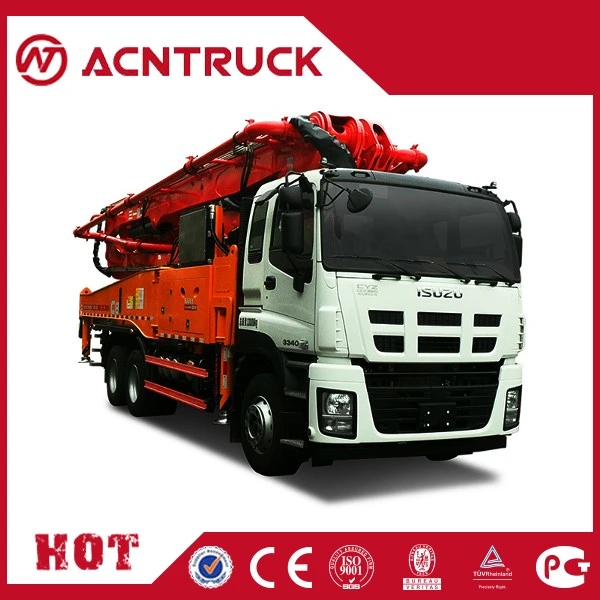

37m Concrete Cement Pump Truck 140cbm/H 56m Hb56

concrete pump truck 38m 47m 56m 62mSelling Point:1. More advanced boom structure technology2. More efficient skirt valve pumping technology3. More stable strut structure technology4. More stable reversing buffer technology5. More reliable full hydraulic reversing technology6. Hydraulic system technology of ultra-low pressure los

Featured Products

concrete pump truck 38m 47m 56m 62m

Selling Point:

1. More advanced boom structure technology

2. More efficient skirt valve pumping technology

3. More stable strut structure technology

4. More stable reversing buffer technology

5. More reliable full hydraulic reversing technology

6. Hydraulic system technology of ultra-low pressure loss

7. More secure and intelligent electrical control technology

 Max. Theor. output                       m3/h140/90
Rated working pressure                      MPa35
Pumping frequency                             min-127/17
Hopper capacity                                   L550
Filling height                                   mm1540
Hydraulic system type opened loop
Distribution valve S valve
Oil cylinder dia.×stroke                   mmφ130×2100
Concrete cylinder    dia.×stroke            mmφ230×2100
Hydraulic oil cooling Wind cooling
Recommended concrete slump                    cm12~23
Max. aggregate dimension                    mm40
Boom  SectionStructure type 38X-5RZ
Placing depth                               m38
Max. horizontal distance                       m34
Max. placing depth                          m24.9
Slewing angle ±270°
Boom number 5
The length of boom section                      mm8890/8100/8105/5405/3500
Sections folding angle 90°/180°/180°/250°/90°
Pipe diameter                                mm125
End hose length                            mm3000
Min. height of opening placing boom        mm9610
Outriggers span     (front×rear×side) mm6190×8345×7045
Upper StructureUpper Structure Mass                  kg15260
Dimensions(L×W×H)mm9845×2500×3596
