HBQZ 38 tons hot sale SQ760ZB6 boom truck crane with perfect crane service

HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane servicePart 1-----PRODUCT DETAILSPictures show:Technical information:Model #SQ760ZB6/knuckle crane38ton at 2mMax Liftingmoment760Kn.mMax Lifting Capacity25000/3.06500/9.54200/12.93500/14.7Max Lifting Height17.5mMax Working Radius14.7mBoom Section6stagesRotation

Featured Products


HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service

Part 1-----PRODUCT DETAILS

Pictures show:
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service

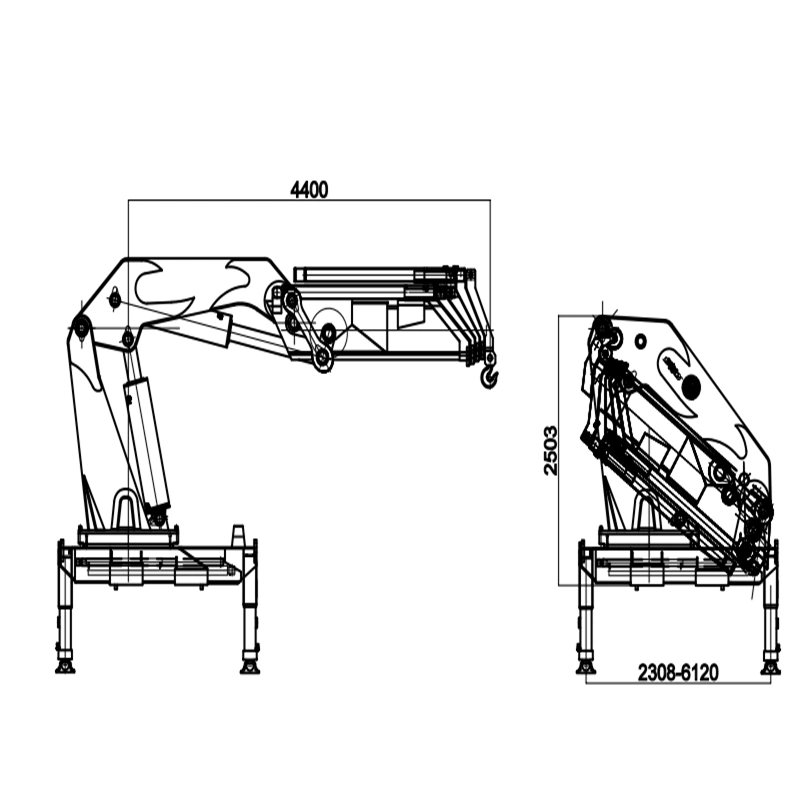

Technical information:

HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
Model #SQ760ZB6/knuckle crane38ton at 2m
Max Liftingmoment760Kn.m
Max Lifting Capacity25000/3.0
6500/9.5
4200/12.9
3500/14.7
Max Lifting Height17.5m
Max Working Radius14.7m
Boom Section6stages
Rotation Angle360°All Rotaion
Rated Working Pressure28mpa
Oiltank Capacity250L
Related Oil Flow80 L/min
Outrigger Span2330-7100mm
Outriggeradjustable, Hydraulic operating.
Crane Weight8200kg
Installation Space1800mm
Swing typePlanetary gear reduction
Safety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
OptionsAux.winch,Aux.Boom,Remote control
MaterialHG785D
Truck for reference
Truck brandDongfeng (other truck brand can be customized)
Cabin Driving type: 6x4, Left hand drive (Right hand drive type can be customized)
Color is optional
Vehicle Main DimensionsOverall size (L x W x H)11950x2490x3850mm
Wheel base5850+1350 mm
Cargo Body8400*2300*550mm
Weight in KGSGVW25000 kg
Tare weight 16250kg
Front axle loading capacity2 x 2500 kg
Rear axles loading capacity2 x27500 kg
Engine TypeDiesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
 Horse Power240HP (177kw)
 Max Torque1000N.m
 Emission standardEuro V
Max Speed102 km/h
Gearboxmanual gearbox with 9 forwards & 1 reverses, with PTO
Tire 11.00R20   11 pieces including one spare tire

Our advantages:

1. Use HG785D international standard high-strength steel to reduce the weight of crane.
2.The boom of the knuckle crane is used hexagonal structure,reducing the lateral.
3.Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts to ensure the micro-mobility,security and stability.
4.Parker brand oil seal and gasket for hydraulic pump.
5.Brand scanreco remote control operate from Sweden.

Part 2-----OUR COMPANY


HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HUBEI BEST CRANE CO.,Ltd is located in the central of Hubei Province in China.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.

HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include  a variety of special hydraulic cylinder.

After 19 years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.

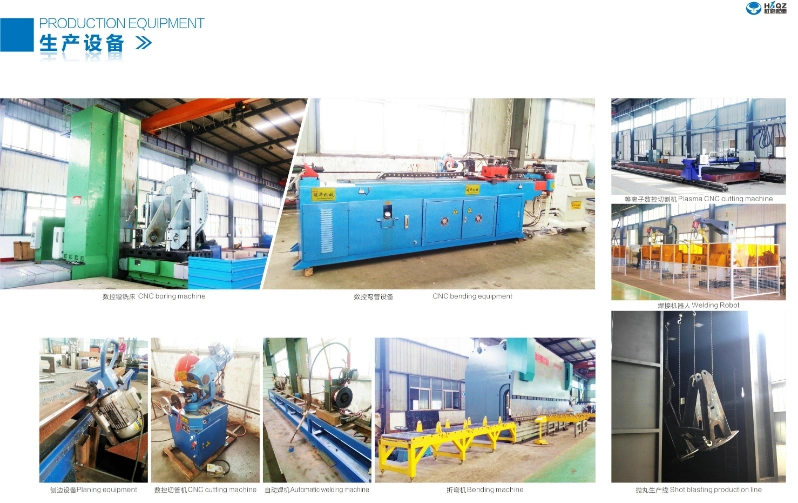

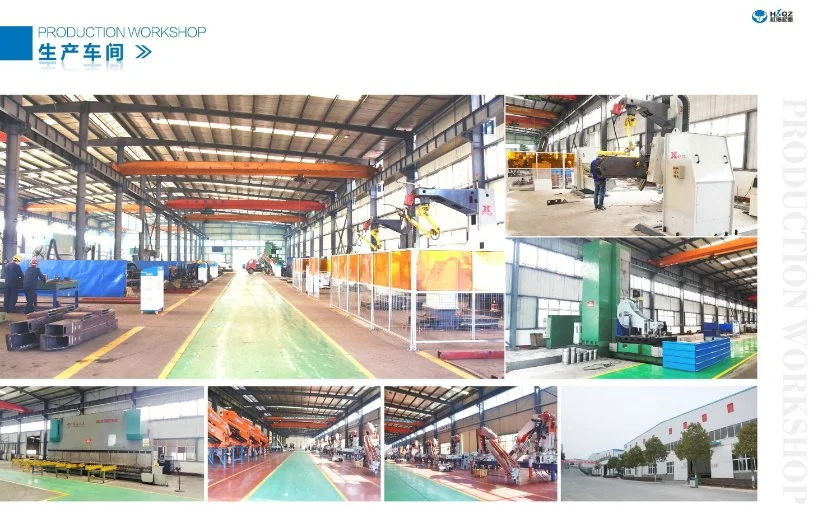

Our company have more than 800 units equipment for mass production.
We can product around 220 thousand units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce customized products or develop new products.

HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service
HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service



Part 3-----EXHIBITION

Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.

HBQZ 38 Tons Hot sales SQ760ZB6 Boom Truck Cranes With perfect crane service




Part 4-----FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
     And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
