HBQZ 30 ton hot sale SQ600ZB6 luffing jib truck crane with perfect crane service

 HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service Part 1-----PRODUCT DETAILS Pictures show:Technical information:Model #SQ600ZB6+1 /knuckle crane 30ton at 2mMax Liftingmoment600Kn.mMax Lifting Capacity19600/3.05100/9.73400/13.42400/17.2Max Lifting Height17.6mMax Working Radius15.3mBoom S

Featured Products

HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service

 HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service

Part 1-----PRODUCT DETAILS


Pictures show:
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service
Technical information:
Model #SQ600ZB6+1 /knuckle crane 30ton at 2m

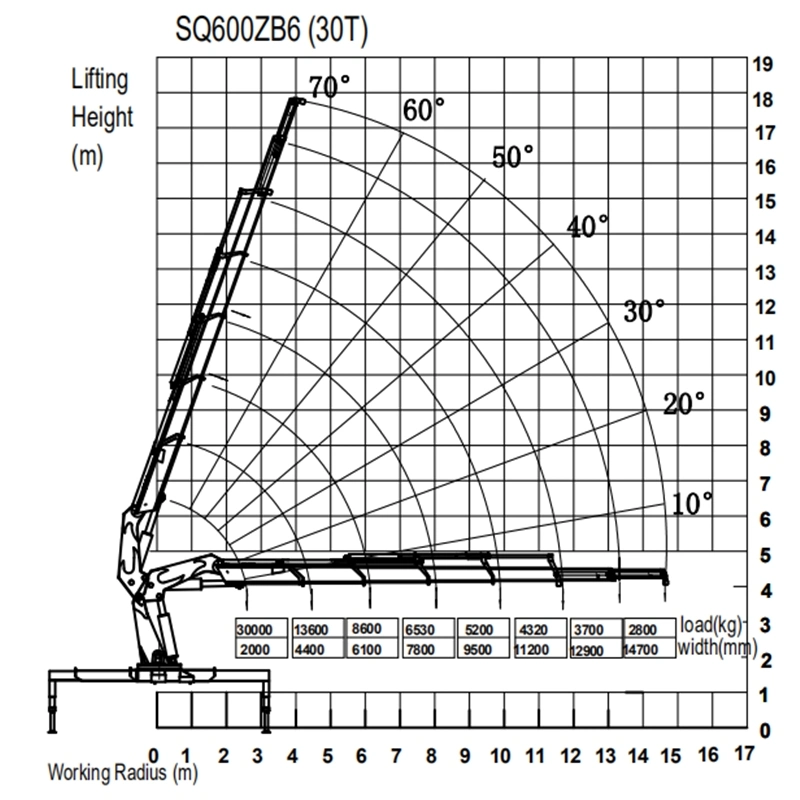

Max Liftingmoment600Kn.m
Max Lifting Capacity19600/3.0
5100/9.7
3400/13.4
2400/17.2
Max Lifting Height17.6m
Max Working Radius15.3m
Boom Section6 stages
Rotation Angle360°All Rotaion
Rated Working Pressure28mpa
Oil tank Capacity250L
Related Oil Flow80 L/min
Outrigger Span2330-7100mm
Outriggeradjustable, Hydraulic operating.
Crane Weight8700 kg
Installation Space1800mm
Swing typePlanetary gear reduction
Safety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
OptionsAux.winch,Aux.Boom,Remote control
MaterialHG785
Truck for reference
Truck brandDongfeng (other truck brand can be customized)
Cabin Driving type: 8x4, Left hand drive (Right hand drive type can be customized)
Color is optional
Vehicle Main DimensionsOverall size (L x W x H)11950x2500x3800 mm
Wheel base1800+4600+1350 mm
Cargo Body6800x2350x500 mm
Weight in KGSGVW31000 kg
Tare weight14500 kg
Front axle loading capacity2 x 7000 kg
Rear axles loading capacity2 x 16000 kg
Engine TypeDiesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
 Horse Power371HP (273kw)
 Max Torque1500N.m
 Emission standardEuro II
Max Speed102 km/h
Gearboxmanual gearbox with 10 forwards & 2 reverses, with PTO
Tire 12R22.5 tubeless tire, 13 pieces including one spare tire
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service

HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service

1. Use HG785D international standard high-strength steel to reduce the weight of crane.
2.The boom of the knuckle crane is used hexagonal structure,reducing the lateral.
3.Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts to ensure the micro-mobility,security and stability.
4.Parker brand oil seal and gasket for hydraulic pump.
5.Brand scanreco remote control operate from Sweden.

Part 2-----OUR COMPANY
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service


HUBEI BEST CRANE CO.,Ltd is located in the central of Hubei Province in China.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.

HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include  a variety of special hydraulic cylinder.

After 19 years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.


Our company have more than 800 units equipment for mass production.
We can product around 220 thousand units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce customized products or develop new products.

HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service
HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service


Part 3-----EXHIBITION

Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.

HBQZ 30 Tons Hot sales SQ600ZB6 Boom Truck Crans With perfect crane service


Part 4-----FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
     And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
