high pressure construction machinery electric grout pump machine price

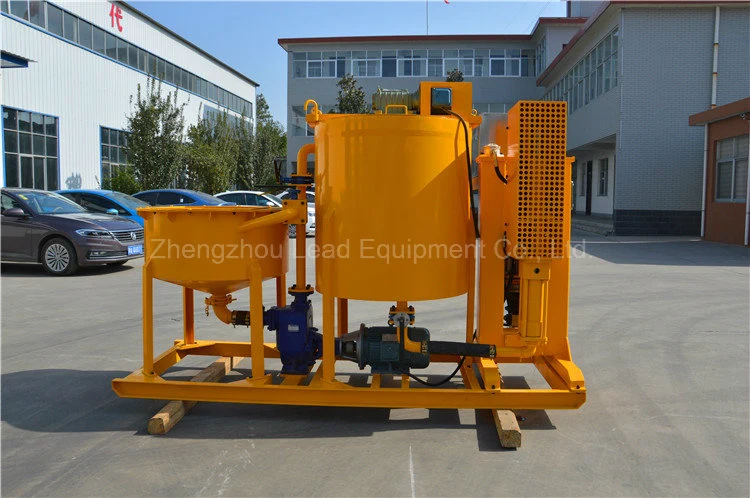

LGP250/700/75PI-E grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc, in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.
Features of Cement Grout Injection Station:
1.Grouting pressure, displacement is stepless adjustable
2.Simple structure, light weight, easy maintenance
3.Double grouting cylinder, continuous output with small pulse
4.Less spare parts ensure low maintenance costs
5.High speed vortex mixer ensures mix quickly and evenly.
6.Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate
7.The motor has an overload protection function. Hydraulic system with oil temperature overheating protection
8.With CE, ISO certification
|Grout Station model||LGP250-700-75PI-E|
|Suitable water/cement ratio||≥0.5:1|
|Pump(vertical compact hydraulic grout pump, two oil gearbox)|
|Output/pressure||Low pressure:0-75L/min,0-50bar |
High Pressure:0-40L/min, 0-100bar
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
