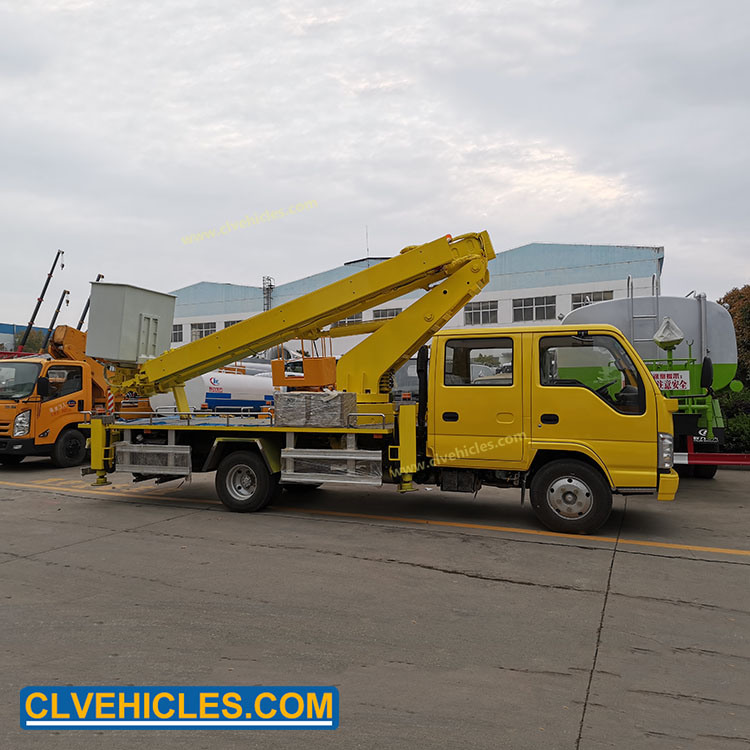

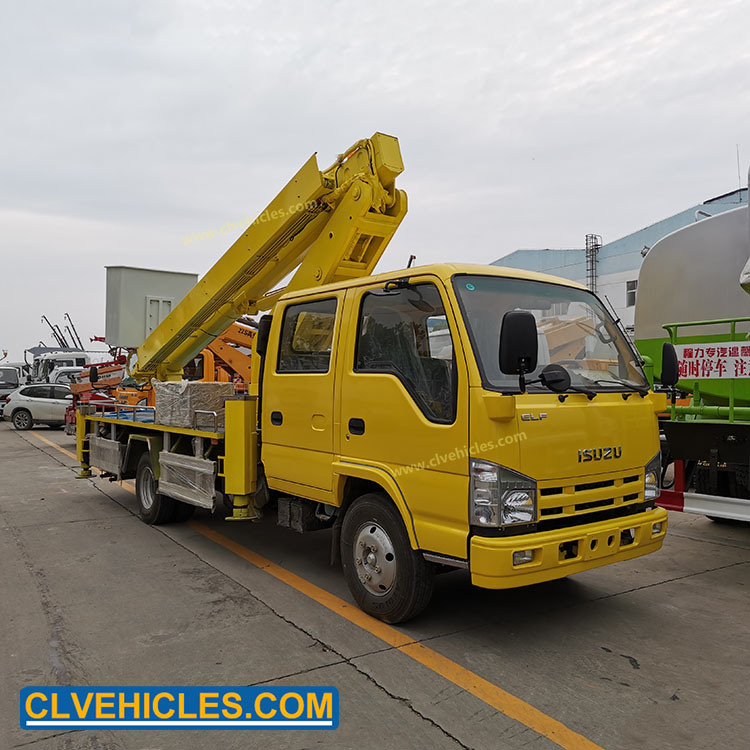

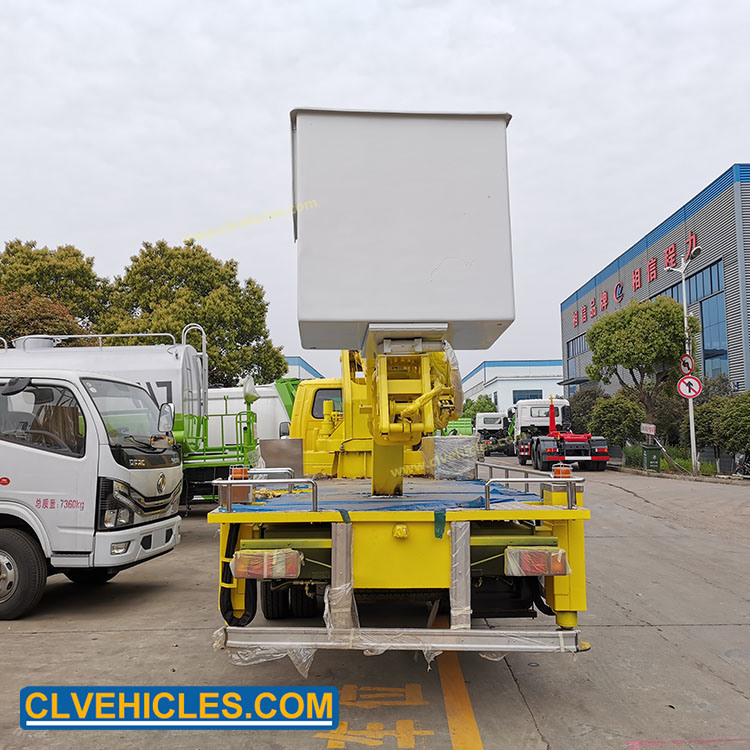

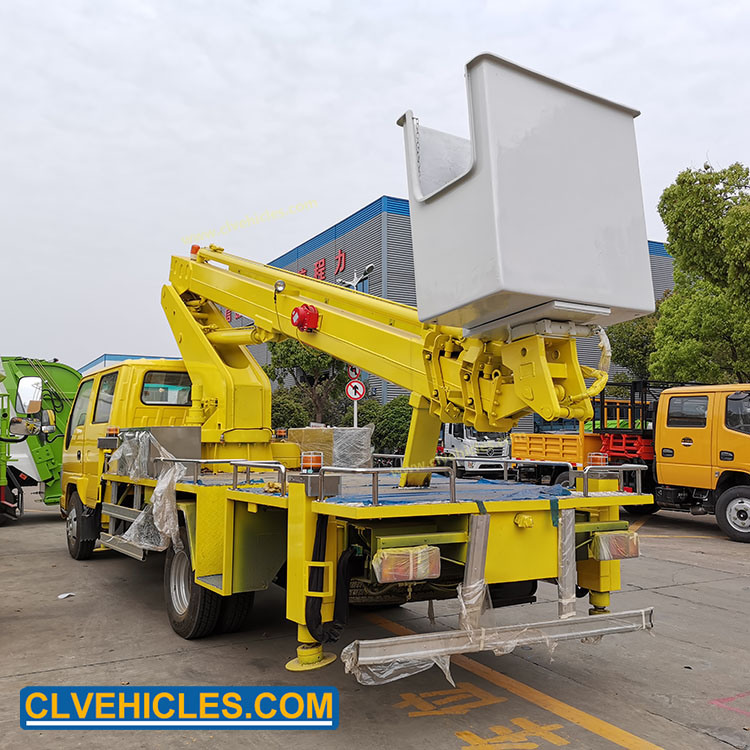

ISUZU Telescopic Boom Cherry Picker Truck 35KV Insulation Aerial Bucket Manlift Truck
Aerial Bucket Truck, also called Aerial Platform Working Truck, Telescopic Boom Lift Aerial Platform Work Truck, Aerial Boom Lift Working Truck, Aerial Platform Bucket Working Truck, Aerial Work Truck, Bucket Truck, Cherry Picker Truck.
Aerial Bucket Truck has telescopic arms and provides temporary access for people or equipment to inaccessible height areas. The arm shaft is compact,flexible and large operating range. Four hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
Hydraulic Telescopic Boom Lifting Truck is mainly used for municipal engineering, municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
The aerial bucket platform working height can reach to 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters.
The available chassis brands are ISUZU, SINOTRUK, DONGFENG, FAW, FOTON, JAC, JMC, HYUNDAI, etc.
The boom can be 35KV insulation, which supports to work in high voltage lines places.
|Cab||HOWO 1880mm width single row seats|
|Driving Type||4*2 Left hand driving|
|Max Speed (km/h)||90|
|Overall dimension (mm)||7300*2080*2920|
|GVW (kg)||Appro. 5490|
|Mass in working order ( kg)||Appro. 5160|
|F/R track base (mm)||1610/1550|
|F/R overhang (mm)||1065/2125|
|Clutch||Single-plate dry diaphragm spring clutch|
|Steering||Hydraulic steering with power assistance|
|Gear box||WLY6T100 6 forward speed|
|Fuel Type||Diesel fuel|
|Emission Standard||Europe 4|
|Type||Water-cooled four-stroke, supercharged inter-cooling|
|Max output power/rotate speed (hp /rpm )||108/3600|
|Max torque/rotate speed (N.m/rpm)||260/2000|
|Braking System||Service Brake||Air brake|
|Park Brake||Spring energy|
|Working height (m)||18|
|Max working radius (m)|
Three sections folding working boom
|Rated loading in the bucket(kg)|
|Bucket size (mm)|
|Rotating speed (r/min)|
four sets hydraulic legs
|Boom control mode|
Four hydraulic supporting legs with manual operation
1. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
2. Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
3. With a monitor, real-time display of the vehicle operating conditions.
4. Hexagonal working arm, synchronization telescope, compact structure, high efficiency and wide operating range.
5. External telescopic cylinder, chain telescopic mechanism, easier to observe the fault point, convenient maintenance.
6. The vehicle has two operation ways : platform operation and operating on the ground which is safe, reliable and high efficiency.
7. Slewing mechanism adopts adjustable type, which is easy to adjust.
8. Non-slip body
9. Toolbox (2 pieces)
