Small concrete pump is a kind of machine, which is used to convey concrete continuously along the pipeline. And it has played an essential role in conveying concrete. Under the current circumstance of sluggish economy, big city commercial housing construction, railway construction, bridge construction are in frustration, therefore, the small mobile concrete pump is in great demand. And small concrete pumps are widely used to convey mortar, small aggregates, refractory materials, thermal insulation materials, greening soil in ecological environment construction and plain concrete, fiber concrete in various kinds of engineering projects.
Working principle of small concrete pumps for sale
The pumping system of small size concrete pump is driven by electric motor or diesel engine, the concrete throughput can be adjusted automatically by the hydraulic system or manual control. Pumping system consists of six parts: hopper, mixing system, concrete distributing valve, concrete conveying cylinder, washing chamber and master cylinder.
Actually, the working process of small concrete pumps for sale is suction and discharge of the concrete by pressure. When the pressure oil of the hydraulic system enters into the master cylinder, the piston rod stretches out,;
At the same time, the pressure oil passed the communicating pipe makes another piston rod retract, when the concrete conveying piston connected with the piston of the master cylinder retracts, it will have a self priming effect on the conveying cylinder, and the concrete in the hopper will be inhaled into the conveying cylinder by guiding valve under the effect of air pressure and mixing blades.
Meanwhile, another oil cylinder under the effect of the oil pressure pushes the piston rod of the master cylinder to stretch out, and drives the concrete piston to push out the concrete in the conveying cylinder, and enters into the concrete conveying pipeline through the guiding valve conveying mouth Y pipe.
A concrete pump is a machine used for transferring liquid concrete by pumping. There are two types of concrete pumps.
The first type of concrete pump is attached to a truck or longer units are on semi-trailers. It is known as a boom concrete pump because it uses a remote-controlled articulating robotic arm (called a boom) to place concrete accurately. Boom pumps are used on most of the larger construction projects as they are capable of pumping at very high volumes and because of the labour saving nature of the placing boom. They are a revolutionary alternative to line-concrete pumps.
The second main type of concrete pump is either mounted on a truck or placed on a trailer, and it is commonly referred to as a line pump or trailer-mounted concrete pump. This pump requires steel or flexible concrete placing hoses to be manually attached to the outlet of the machine. Those hoses are linked together and lead to wherever the concrete needs to be placed. Line pumps normally pump concrete at lower volumes than boom pumps and are used for smaller volume concrete placing applications such as swimming pools, sidewalks, and single family home concrete slabs and most ground slabs.
There are also skid mounted and rail mounted concrete pumps, but these are uncommon and only used on specialized jobsites such as mines and tunnels.HBT DHBT-series concrete pump
Radiator: Adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.
The main oil pump: Adopts the German Hawe / Rexroth / Japanese Kawasaki series.
Lubrication system: Adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
Power system: The power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.
Diesel Series: Power system employs the original Volvo and Lovol diesel engine.
Electrical parts: The main electrical products adopts Schneider, LG products to the reliability of the electronic control system.
Hydraulic Hose Fittings: Adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
Large cylinder seals: Large cylinder seals adopts the US Parker products.
S valve: Employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
Glasses plate cutting ring: Glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
Pistons: Adopts the imported materials and precision machining, with excellent qualities: Hydrolysis resistance, wear resistance and high temperature resistance.
|Whole machines performance||Theoretical max. Discharging volume||M³/h||40||50||60||80|
|Theoretical max. Delivery pressure||MPa||07||12||15.7||12.5|
|Max. Delivery frequency||Times/min||24||20||22(low pressure); 13(high pressure)||26(low pressure); 16(high pressure)|
|Theoretical max. Delivery distance||Vertical||M||120||150||250||180|
|Distribution valve type||S tube valve||S tube valve||S tube valve||S tube valve|
|Specification of delivery cylinder||mm||Φ160×1000||Φ200×1200||Φ200×1650||Φ200×1650|
|Specification of main oil cylinder||mm||Φ100/Φ70×1000||Φ125/Φ80×1200||Φ140/Φ90×1650||Φ125/Φ80×1650|
|Oil tank capacity||L||300||300||420||420|
|Outlet opening diameter||mm||Φ125||Φ150||Φ150||Φ150|
|Inner dia. Of delivery pipe||mm||Φ100||Φ125||Φ125||Φ125|
|Power system||Main motor power||Kw||45||55||110||110|
|Hydraulic oil circuit type||Open circuit||Open circuit||Open circuit||Open circuit|
|Max. Oil pressure of pumping system||MPa||28||28||32||32|
|Max. Oil pressure of mixing system||MPa||14||14||14||14|
|Max. Mixing speed||R/min||30||24||24||24|
|Other parameters||Allowed range of concrete slump||mm||80~200||80~200||80~200||80~200|
|Max. Diameter of aggregates||mm||30||Pebble 40, crushed stone 30||Pebble 50, crushed stone40||Pebble 50, crushed stone40|
XBS-series fine stone pump have transformed from the original Φ80 delivery tube to Φ100 delivery tube, which can transport the <3cm concrete, so XBS-series fine stone pump has more versatile function. (like transport mortar, fine stone and large aggregate concrete).
Electronic control system: High degree of automation and reliability, major appliances adopts Schneider, LS.
Lubrication system: Adopting the automatic multi-point lubrication technology featuring one to one lubrication, with better efficiency and the extending service life of wearing parts.
Hydraulic system: The new application of liquid control reversing technology makes pumping more reliable and lower failure rate in the hydraulic system. It can configures the valve specially manufactured for the liquid control system, features with large flow and have lower power and less impact and longer life.
The main oil pump: Adopts the constant power variable plunger pump of the joint venture brand, so that the constant power control could effectively prevent motor and diesel overload and could withstand higher pressures and loads than conventional gear pump, so as to ensure the system running smoothly and reliably, the overpressure relief function can effectively protect the main pump and the diesel engine.
Power system: The electric fine stone pump adopts the well-known domestic and foreign brands: Yantai motor, Siemens Beide motor, the fine stone pump of diesel engine adopts low-power high-efficiency Tianjin Lovol, Yuchai.
Hopper device: Increased volume, added the fence, equipped with vibration motor, to meet the requirements of fine concrete pumping.
Cooling system: Adopts the air-cooled, water-cooled twin cooling system, which not only adjusts to the cold climate, but effectively controls the hydraulic oil temperature so as to ensure the safety and reliability of equipment operation.
Hydraulic pipe fittings: The hose is imported from Italy and the joint is the US Eaton products, the hose connector assembly sets is provided by Eaton, aiming to ensure the safety of the hydraulic system.
S valve: Adopts the manganese steel overall casting and the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant. Lumen transition is smooth, providing with unimpeded flow of concrete, so that the pumping performance has been further improved.
,: , .
Glasses plate: The cutting loop was made by cemented carbide with durable service.
Glasses plate cutting loop: Glasses plates and cutting loop inlaid adopts the carbide hard to ensure a durable design.
The features and advantages of the full hydraulic control hydraulic system:
Extending component life: Adopts full hydraulic control reversing hydraulic systems, pumping, S tube is assigned to the alternate action without involving in the electrical signal with less reversing impact and lower noise and can significantly improved the service life of hydraulic pump and hydraulic valve.
Improving equipment reliability: Full hydraulic control system eliminates the intermediate links of electrical control signal and the move greatly improves the reliability of the entire equipment.
Reducing the failure frequency: The full hydraulic control system adopt the centralized valve plate, puts the main hydraulic valve system to the valve plate and reduces pipe cross-connect, so that the system becomes more compact and lows leakage chances.
Lowering maintenance costs: The system deletes the four most easily damaged components in the electric control commutation system and reduces the maintenance costs of the equipment.
|Whole machine performance||Theoretical max. Discharging volume||M³/h||25||40||30|
|Theoretical max. Delivery pressure||MPa||12||13||13|
|Max. Delivery frequency||Times/min||24||30||30|
|The type of distribution valve||S tube valve||S tube valve||S tube valve|
|Specification of delivery cylinder||mm||Φ140×800||Φ140×800||Φ140×800|
|Specification of main oil cylinder||mm||Φ80×Φ50×800||Φ80/Φ50×800||Φ80/Φ50×800|
|Outlet opening diameter||mm||Φ125||Φ125||Φ125|
|Power system||Rated voltage||V||~380||~380||~380|
|Main motor power||Kw||30||45||37|
|Assistant motor power||Kw||3||3||3|
|Hydraulic system||Hydraulic oil circuit type||Open circuit||Open circuit||Open circuit|
|Max. Oil pressure of pumping system||MPa||25||25||25|
|Max. Oil pressure of mixing system||MPa||9||9||9|
|Max. Mixing speed||R/min||24||24||24|
|Oil tank capacity||L||200||200||200|
|Other parameters||Max. Diameter of aggregates||mm||≤25||25||25|
|Inner dia. Of delivery pipe||mm||Φ80||Φ80||Φ80|
Adopts XBS25-12-33 fine stone concrete pump for transporting mortar. The comparison of mortar and fine stone transported by fine stone concrete pump and mortar and fine stone transported by construction elevator:
,: , , , 3.2m2, .
As for the same working condition and construction structure, let's take the ground handling of one site in Qingdao city as an example: Both of them have three units with 32 floors and the total area is 32000 m2, the following is the comprehensive comparison between fine stone concrete pumps and construction elevators for conveying.
1. Personnel allocation for fine stone concrete pumps as shown as the following:
1, 2(4), 2, 2, 2, 4, 15.
One fine stone concrete pump operator, two sets of blenders and two operators for each blender (totally 4 persons), two persons for concrete supplying, two persons for ground cleaning, two persons for concrete pouring, and four persons for smoothing ground, totally 15 persons.
, 12m³/h(, 20m³/h), 12m³/h*8h=96m³, 5-6cm, 1920, 128, 17.
Generally, the average conveying capacity is 12m³/h (the data includes machine shut down time, and the theoretical conveying capacity of fine stone pump is 20m³/h), conveying capacity of every day is 12m³/h*8h=96m³, and construction surface is 5-6cm in thickness, so every day can make 1920, and the average work for each people is 128, which totally needs 17 days for finishing this work
2. Personnel allocation for construction elevator is shown as the following:
2/2/2/8/2/4/2, 22., 6, 120.06m³, 1612, 8, 12*0.06*8*4=23m³, 460, 21, 70.
Two persons for two sets of blenders, two persons for concrete supplying, two persons for carrying sand and stone, 8 persons for transportation, two cleaners, four persons for concrete pouring, and two persons for ground smoothing, totally 22 persons. Usually, construction elevator can carry two transporting vehicles at each time, low-rise floor costs 6 minutes and high-rise floor takes 12 minutes for one lifting and each vehicle can carry 0.06m³, so each hour there can be 12 vehicles in 6 times of transporting, if we take 8 people divided into four groups for counting: 12 vehicles *0.06*8*4=23m³, so every day can have 460 and per capita is 21, which needs 70 days for finishing this work.
Use S-valve to switch the direction, for fine stone concrete conveying
Good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
High delivery pressure for demand of high-rise and long distance projects
Double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
Air cooling system, without dependence of external water supply
With re-pumping function to smooth construction of better accessibility
Automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
Equipped with wired remote controller, easy to operate

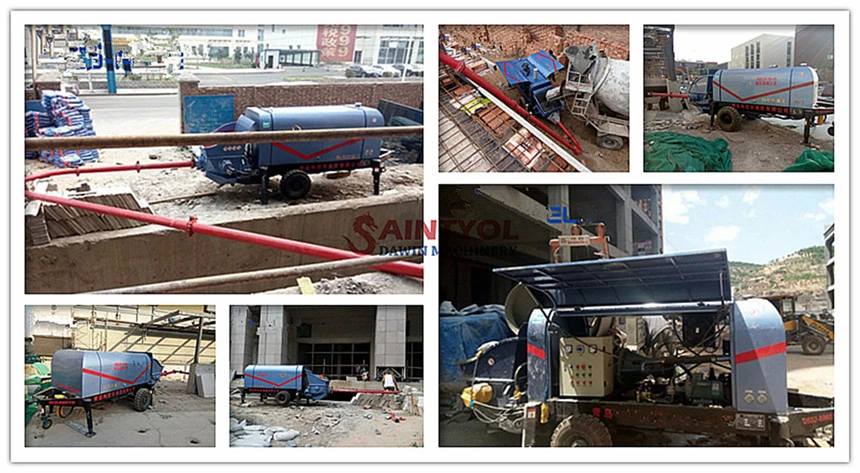

Areas of application:
The SAINTYOL DAWIN Machinery concrete pumps are based on technical pioneer achievements. They keep researching and developing new technology - and have been doing so for many years! They are the national initiative equipment for fine stone concrete conveying and won two national patents.
·Fine stone concrete conveying
·Floor heating construction
·Tunnel and underground construction
·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying
·HBT20~80 Concrete pumps are applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
Packing List of SAINTYOL DAWIN Trailer Concrete Pump
SAINTYOL DAWIN Machinery is a company specializing in the research, design and production of construction machinery for nearly 20 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.
We take care of your order!
1. Best manufacturer in North China.
2. A factory with over 20 years' experience.
3. Professional teamwork of every process.
4. Competitive price and perfect quality.
5. Efficient after-sale service.
SAINTYOL DAWIN Machinery Answers:
Q: How many kinds of trailer concrete pumps you have?
A: We have all kinds of concrete pumps such as small models with capacity 20, 25, 30, 40m3/h, medium models with capacity 40, 50m3/h, large models with capacity 60, 803/h.
Q: Do you have concrete placing booms that could be working together with concrete pump?
A: Yes, We have below series.
1: 13/15/17m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17Mobile Hydraulic Spider Concrete Placing Booms
3: 28/32m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: What is the configuration?
A: For exporting, most of the components are world famous top brands such as LOVOL, DEUTZ, Siemens, Rexroth, Kawasaki, Schneider, Omron, LG, Eaton, Manuli, Parker etc. The configuration could be customized according to client's requirements.
Q: Is engineer available for training and after sales service?
A: Yes, our oversea engineers team are standing by for oversea service. Some engineers could speak English.
1. May enjoy the life-long service after you buy our products.
2. Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting
Equipment, auxiliary staff is ready. Engineers are available if you need.
4. Certain quantity stochastic tool will be provided while delivering goods.
5. Within 48 hours service will be available according to different regions after received
6. For exported products, Our company sends the constructor to help to operate and
Management equipment, time according to your needs. The related fee will be undertaken
7. Promptly provides the fittings according to users' demands, handles for the user consigns
8. All products (easy worn parts not included) loss caused by non-human factors will be
Free of charge for half a year.
9. Provides the technology advisory service as necessary.
