Shotcrete machine for spraying shotcrete onto mine side walls and roof in tunneling
1. LZ-9 shotcrete machine description:
LZ-9 is large-sized shotcrete machine for the spraying process.
LZ-9 can be used for large-section tunnel building, mine, etc
LZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. LZ-9 shotcrete machine technical parameters:
3. LZ-9 shotcrete machine detailed images:
Related products:
If you want to know the LZ-5A and LZ-7E shotcrete machine, please copy the link to the browser.
4.Company information:
1. LZ-9 shotcrete machine description:
LZ-9 is large-sized shotcrete machine for the spraying process.
LZ-9 can be used for large-section tunnel building, mine, etc
LZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. LZ-9 shotcrete machine technical parameters:
| Output Capacity | 9m3 /h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
| Max. Aggregate Size | Dia.20 mm |
| Conveying Hose Inner Diameter | Dia.64 mm |
| Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 10~12m3/min(357-430CFM) |
| Material Charging Height | 1.1m |
| Rotor Speed | 11r/min |
| Electric Motor | 7.5kW,Y132M-4,IP55 |
| Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 |
| Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
| Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
| Net Weight | 900kg |
3. LZ-9 shotcrete machine detailed images:
Related products:
 |  |
| https://led0518.en.made-in-china.com/product/WqwQdOiVLoRx/China-Lz-5A-Air-Motor-Type-Anti-Explosion-Mining-Used-Shotcrete-Machine.html | https://led0518.en.made-in-china.com/product/PSwEZWdHELUf/China-Concrete-Spraying-Dry-Shotcrete-Machine-for-Sale.html |

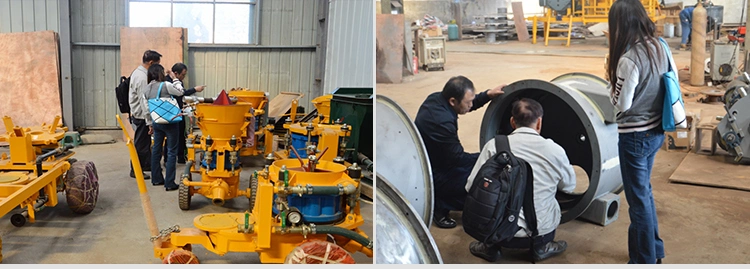

4.Company information:
