SINOTRUK HOWO Concrete Mixer Truck
Wholesale Military Quality Concrete Mixer for Construction Site


1. Main specifications

Engine power: 336hp; 371hp ;420hp

Emission Standard: Euro 2 ---Euro 4

Tire: 12.00-20; 12.00R20; 12R22.5; 315/80R22.5

Mixer Volume: 6cbm - 14cbm

Hydraulic system: Motor and pump are Italian brand ARK or American brand EATON; gearbox is Italian brand TOP


2. Specifications of 10 CBM concrete mixer truck

Overall Dimensions

9780mm*2496mm*3990mm(L*W*H)

Tare Weight

13950kg

Payload

35000kg

Front Overhang

1500mm

Rear Overhang

2880mm

Wheelbase

4000mm+1400mm

Track (F/R)

2022mm/1830mm

CHASSIS

Chassis Brand

SINOTRUK HOWO

Chassis Model

ZZ1257N4048W, driving type 6x4

Cab

HW76, left hand drive, air-conditioner, one sleeper

Engine

SINOTRUK WD615.47, 371hp(273KW), Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L

Transmission

HW19710, No. of speeds: 10 forward 2 reverse

Steering

German ZF8098, turning system pressure 18MPa

Rear Axle

HC16 tandem axle, rated load 2x13ton, ratio 5.73

Wheels and tires

Rim 9.0-22.5; tire 12R22.5, 10 units; Spare wheel carrier: with one spare wheel

Brakes

Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake

Other products
Wholesale Military Quality Concrete Mixer for Construction Site

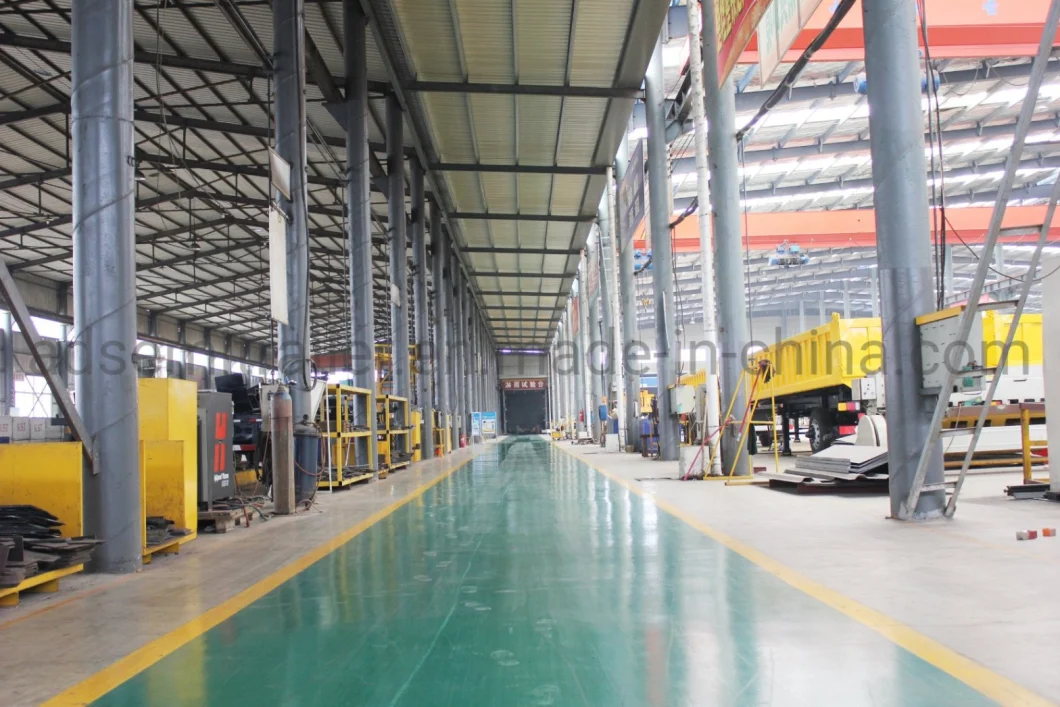

Production workshop
Liangshan Andong Automobile Technology Co., Ltd. is an excellent trade wholesaler of special vehicle manufacturing technology research and development, semi-trailer sales, and trailer accessories sales. It is dedicated to providing you with brand new and excellent 13-meter standard rollover regular car companies nationwide and other products.

Wholesale Military Quality Concrete Mixer for Construction Site
Wholesale Military Quality Concrete Mixer for Construction Site
Wholesale Military Quality Concrete Mixer for Construction Site
Wholesale Military Quality Concrete Mixer for Construction Site


Exhibition
Wholesale Military Quality Concrete Mixer for Construction Site
Wholesale Military Quality Concrete Mixer for Construction Site


Our honor
Wholesale Military Quality Concrete Mixer for Construction Site
Wholesale Military Quality Concrete Mixer for Construction Site

Logistics transportation
Wholesale Military Quality Concrete Mixer for Construction Site


FAQ
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.

2.Whats the qualify assurance we provided and how do we control quality?(1) Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.(2)100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.

3. What's your MOQ?
One unit trailer or truck.

5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
